SPECIFICATIONS
| FRAME SIZE |
S 390, M 420, L 450, XL 490 |
| FRAME |

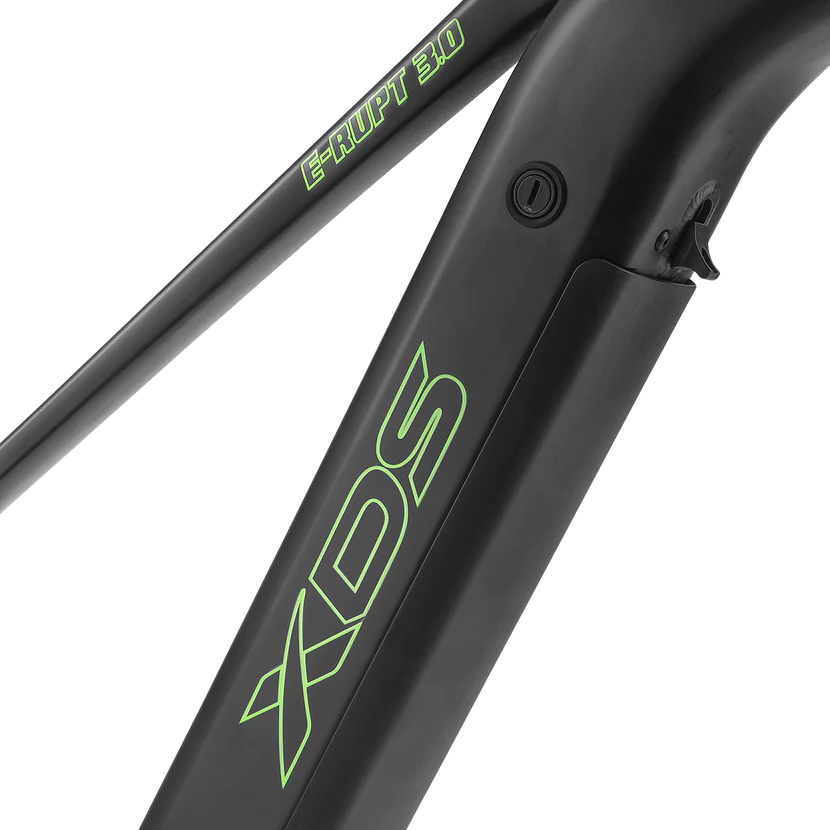

XDS 6061 Alloy |
| FORK |
Suntour XCM34 Boost LO, 130mm travel |
| HANDLEBAR |
Alloy, 780mm wide; 5mm Rise |
| GRIP |
MTB |
| STEM |
Alloy 31.8mm, E: 45mm |
| SEATPOST |
Dropper Post, internal routing |
| SEAT CLAMP |
Alloy |
| SADDLE |
Black steel rail, MTB |
| GEAR SHIFTER |
Shimano Deore 10 speed |
| FRONT BRAKE |
Shimano MT 400 Hydraulic with 1800mm rota |
| REAR BRAKE |
Shimano MT 400 Hydraulic with 1800mm rota |
| FREEWHEEL |
Shimano HG-500-10, 10speed 11-42t |
| PEDAL |
MTB |
| CHAINWHEEL |
Bafang Max 38t |
| BOTTOM BRACKET |
Bafang |
| HEADSET |
Alloy intergrated |
| FRONT HUB |
Promax sealed cartridge, 110 x 15 |
| REAR HUB |
Promax sealed cartridge 148 x 12 |
| TYRE |
Maxxis Reckon 29 x 2.6 EXO/TR, 60tpi |
| RIM |
Sunringle Duroc 35, STR tubeless, 32mm internal width |
| BELL |
Alloy flick |
| CHAINGUARD |
N/A |
| KICKSTAND |
N/A |
ELECTRICAL COMPONENTS
| MOTOR |
Bafang G520, 95Nm, 250 watt |
| BATTERY |
Bafang F03, 11.6Ah, 36v, 450Wh |
| CONTROLLER |
Bafang |
| DISPLAY |
Bafang DP C230 LCD displaywith thunb control |
| CHARGER |
DLG Charger 36v, 3A |
Specifications are subject to change at any time and without notice.
