| Article number: | E50 |

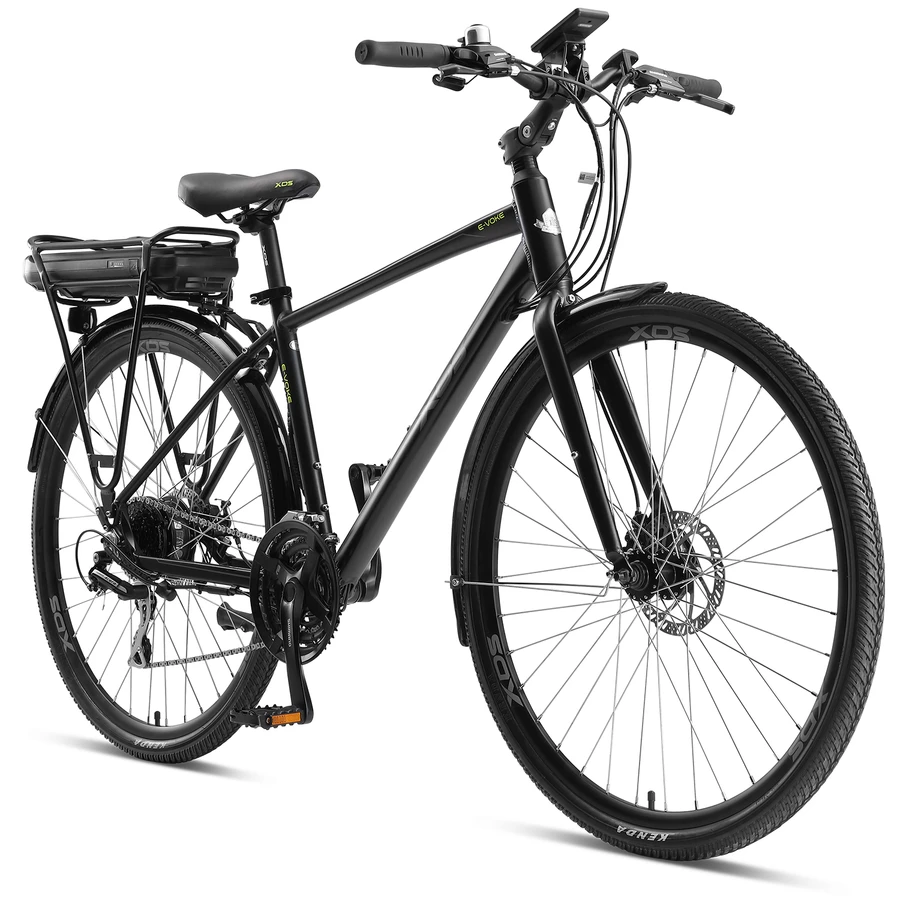

The E-VOKE comes with a reliable 250w Rear Hub Drive Motor, Tektro Disc Brakes and a nimble XDS Alloy Frame to keep it effortless and reliable in any environment.
FRAME XDS Alloy
FORK Steel 700c
HANDLEBAR XDS Alloy (W：620mm 6°H：30mm)
GRIP Rubber Comfort Grips
STEM HL Alloy Adjustable. (φ28.6mm E:105mm H:41mm -10+50°Ï†25.4mm)
SEAT POST XDS Alloy (Φ27.2x350mm)
SEAT CLAMP HL Anodised Alloy
SADDLE Cionlli Comfort Saddle
PEDALS Alloy Cage, PP Body, 9/16"
FRONT BRAKES Tektro Aries Cable Disc Brake
REAR BRAKES Tektro Aries Cable Disc Brake
BRAKE LEVERS Tektro Auriga Cast Aluminium Two Finger Lever & Bracket
GEAR SHIFTER Shimano Acera ST-EF500 EZ-Fire Plus 8 Speed
REAR DERALLIEUR Front: Shimano Altus FD-M310 Rear: Shimano Acera MD-360
FREEWHEEL Shimano Altus CS-HG200 8 Speed Cassette Sprocket. 11-32t
CHAINWHEEL & CRANKS Shimano Tourney FC-TY501, 175mm, 48X38X28T
CHAIN KMC (1/2"x3/32"x116L)
HEADSET (φ28.6xφ44xφ30mm 10PCS H=22)
FRONT HUB KT Alloy (13Gx36H M9x100x108mm)
REAR HUB See Electrical Specs below
BELL Alloy/Plastic
SPOKES Stainless Steel (13G)
TYRE Kenda Hybrid 700c x 40c
RIM XDS Alloy (700C x 622 x 19 x 13G x 36H)
MOTOR Bafang. RM G120.250.DC, 700C, 25km/h, 36V/250W,
DISPLAY Bafang C10.UART LCD Display, DC 36V, 0-5 Modes
SENSOR Bafang. SR PA01.12.S
CHARGER INFORMATION Phylion. CZ2AG7J24 Input: 100-240V 1.6A(MAX) 47/63HZ / Output:42V 2A
MOTOR CABLE Bafang. CR S105.250.SN. 700"，36V-250W，15A，25km/H, 0-5 level
BATTERY Phylion. SF-03 CB5A0181 36V/11Ah
