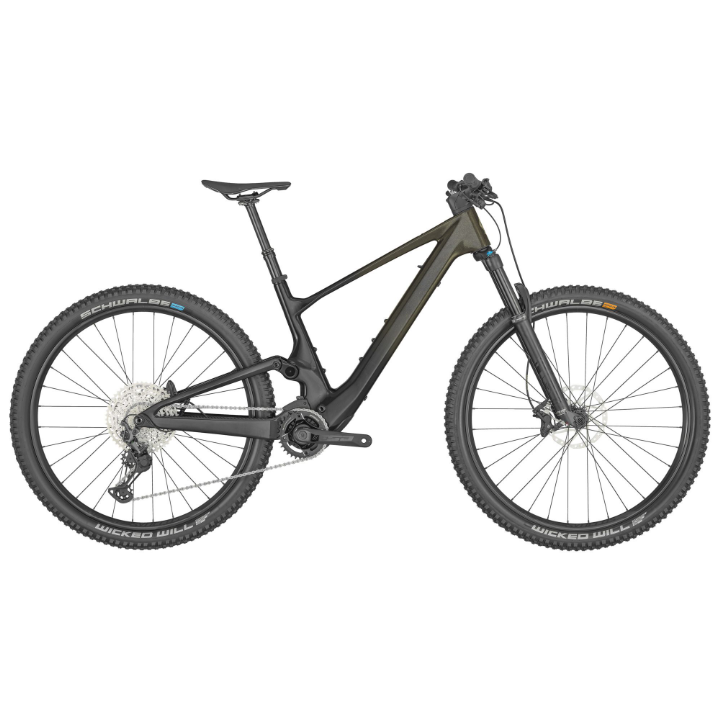

An E-MTB with the weight of an MTB, only 17.6kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.
Please note that bike specifications are subject to change without prior notice
Frame
Lumen eRIDE Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface /12x148mm with 55mm Chainline
Travel: Front: 130mm / Rear: 130mm
Fork: FOX 34 Float Rhythm Air Grip
3-Modes / Kabolt 15x110mm axle/tapered steerer44mm offset Reb. Adj./Lockout/130mm travel
Rear Shock: FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm
Remote System: SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp
Drive Unit: TQ HPR50 Mid Motor drive 50Nm max
Torque / EU: 25kmh / US: 20mph
Battery: TQ Internal 360Wh
Display: TQ HPRBluetooth / ANT+ / Dedicated Smartphone app
Charger: TQ 100-240V-4A
Rear Derailleur: Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
Shifters: Shimano Deore SL-M6100-IR / Rapidfire PlusI
spec EV clamp
Crankset: FSA Alloy crankset / 175mm / 34T
Chainguide: e*thirteen / e*spec Slider
Chainring: Scott custom spider / FSA 12Speed 34T chainring
Chain: Shimano CN-M6100
Cassette: Shimano CS-M6100 / 10-51 T
Brakes:Shimano Deore M6120 4 Piston Disc
Rotor: Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm
Handlebar: Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips
H'stem: Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Seatpost: Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Seat: Syncros Tofino 1.5 Regular, Titanium rails
Headset: Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Hub (Front):Formula CL-811 / 15x110mm
Hub (Rear): Formula CL-148M / 12x148mm / Micro Spline
Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools
Spokes:Stainless Black 15G / 1.8mm
Rims: Syncros X-30SE / 32H / 30mm
Tubeless ready
Front Tyre: Schwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Soft
Rear Tyre: Schwalbe Wicked Will 29x2.4" EVOSuper Race / TLE / 67EPI / Addix Speed Grip
Approx weights in KG17.6 (Tubeless setup)
