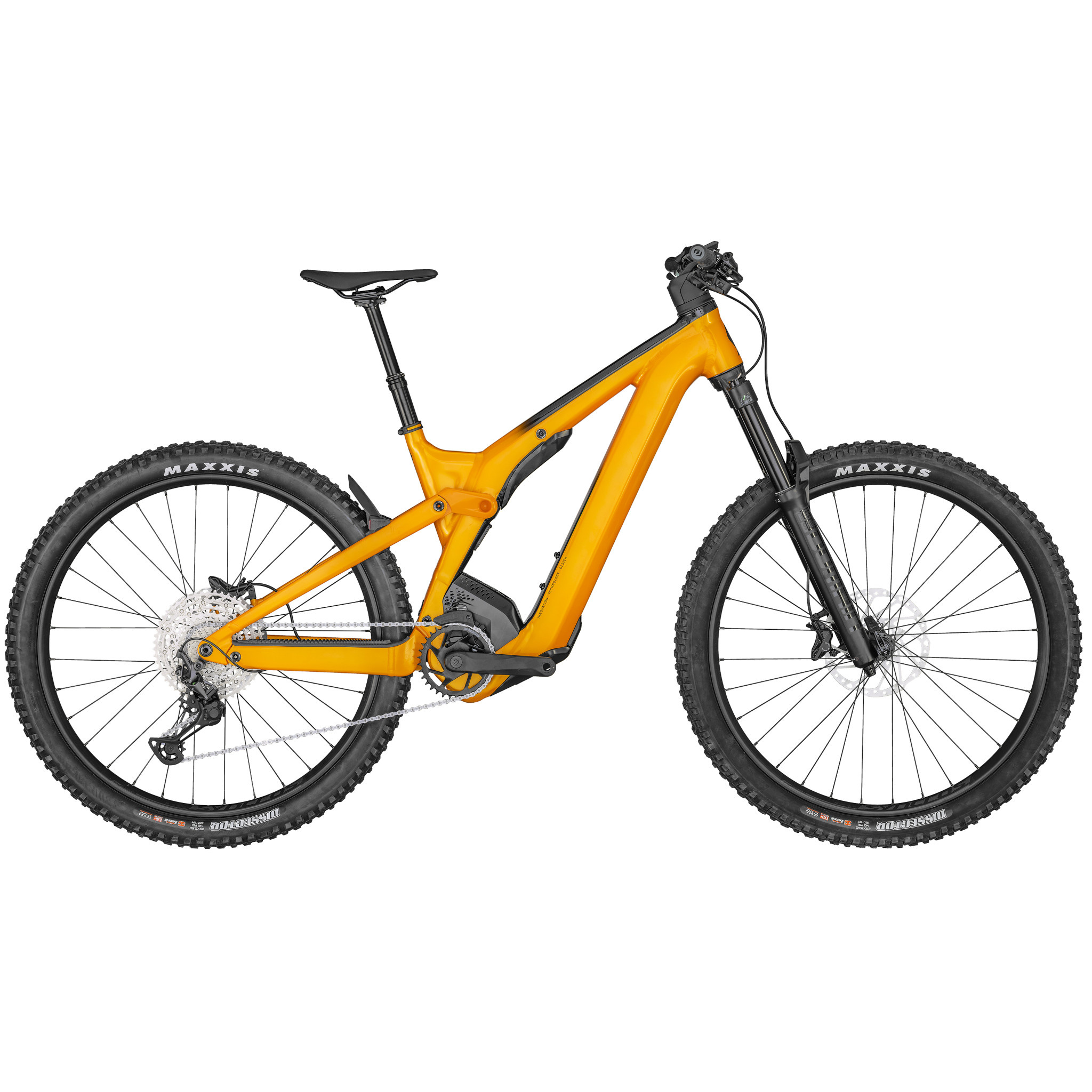

The all-new Patron eRIDE 920 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
Please note that bike specifications are subject to change without prior...
SPECIFICATIONS:
Frame: Alloy Frame & Link
Virtual 4 link kinematic VLK
29x2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8" Headtube, Central Kickstand Mount
Integr. Cable
Travel: Front: 160mm / Rear: 160mm
Fork: RockShox Domain Air
15x110mm QR axle / 1.8" Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
Rear Shock: FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
Remote System: SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes
Drive Unit: Bosch Performance CXEU: 25kmh / INT: 20mph
Battery: PowerTube 750Wh
Display: Bosch LED Remote & Kiox 300
Charger: 4A Charger
Rear Derailleur: Shimano XT / 12 Speed
Shifters: Shimano SL-M6100
Crankset: FSA CK-745 165mm / 34T
Chainguide: e*thirteen / e*spec Slider
Chainring: FSA WB604 / 34T / DM / Steel
Chain: Shimano CN-M6100
Cassette: Shimano CS-M6100 / 10-51 T
Brakes: Shimano BR-MT520 4 Piston
Rotor: Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm
Handlebar: Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on grips
H'stem: Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8"
Seatpost: Syncros Duncan Dropper Post 2.5Size S 100mm / Size M 125mm / Size L 150mm / Size XL 170mm
Seat: Syncros Tofino 1.5 Regular
Titanium rails
Headset: Acros / 1.8"
ZS66 OD74 / integr. Cable
Hub (Front): Formula CL-811 / 15x110mm
Hub (Rear): Formula ECT-1481 / Boost 148x12mm
Spokes: Stainless Black
Rims: Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready
Front Tyre: Maxxis Dissector 29x2.6"120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra
Rear Tyre: Maxxis Dissector 29x2.6"120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra
Lights: Bosch Light Cable pre-installed F&R
Extras: Syncros eRIDE integrated light fender
Approx weights in KG: 26.50
Approx weights in LB: S58.42
